HPLC column equilibration is the process of stabilising the column by fully saturating the stationary phase with the mobile phase, ensuring consistent backpressure, retention time stability, and a smooth baseline before injecting any sample. This is typically achieved by flushing the column with the mobile phase for a defined period—often around 60 minutes or at […]
HPLC column equilibration is the process of stabilising the column by fully saturating the stationary phase with the mobile phase, ensuring consistent backpressure, retention time stability, and a smooth baseline before injecting any sample. This is typically achieved by flushing the column with the mobile phase for a defined period—often around 60 minutes or at least 10 column volumes. When switching to a drastically different mobile phase, such as from high organic to buffered aqueous systems, stepwise equilibration becomes especially important to prevent column damage and inconsistent results.
Because improper equilibration is one of the most common causes of HPLC issues—including shifting retention times, unstable baselines, peak distortion, and poor reproducibility—it plays a critical role in ensuring reliable analysis. For this reason, I decided to share my practical, experience-based knowledge on this topic.
In this article, you will learn what column equilibration is, why it matters, how improper equilibration affects your results, how to equilibrate an HPLC column more efficiently, and key interview questions related to this concept.
HPLC column is packed with the stationary phase. In between the stationary phase, there is empty space. This empty space is called void space, and the volume occupied by this space is called void volume. This void volume is occupied by the mobile phase during column equilibration and helps the analyte to interact seamlessly with the stationary phase and the mobile phase. Due to this sooth interaction separation of different analytes takes place.
In short, we can say that Column Equilibration is the process of stabilising the HPLC column with mobile phase before the injection for smooth interaction of analytes with the stationary phase and mobile phase.
The following problems may arise if the column is not equilibrated properly:
Column is easily equilibrated in the Isocratic mode. Use the following tips to equilibrate the column:
To equilibrate the column in RPC gradient mode is a challenging task for any chromatographers and hence it needs special attention. Column equilibration depends upon the following factors:
Use the following tips while equilibrating the HPLC column:

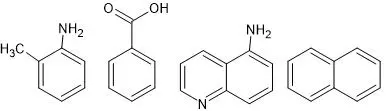

Let us consider a sample mixture containing the following compounds of different polarities:
The following mobile phase gradient is used for the analysis:
| Time | A( 0.3MK2HPO4) and pH 10 with Triethylamine) | B(Acetonitrile) |
| 0 | 80 | 20 |
| 20 | 60 | 40 |
| 40 | 20 | 80 |
| 55 | 20 | 80 |
| 56 | 80 | 20 |
| 66 | 80 | 20 |
This is a longer gradient of 66 minutes, and a problem may arise during analysis due to column equilibration. Now we have to equilibrate the column fast. Use the following steps to equilibrate the column:
| Time | A( 0.3MK2HPO4) and pH 10 with Triethylamine) | B(Acetonitrile) |
| 0 | 80 | 20 |
| 5 | 20 | 80 |
Column equilibration takes a longer time (at least 6 to 12 hours) in NPC, depending upon the mobile phase and column chemistry. In this case column should be equilibrated overnight at a lower flow rate (0.1 to 0.3ml/minute), and then the analysis should be started.
I hope this article has helped you understand HPLC column equilibration and its importance. Now you can independently equilibrate the column effectively. You may also want to check out other articles on my blog, such as how to clean and regenerate HPLC column an HPLC column.
Boost your pharma career with PharmaGuru’s expert-led online courses.: Online Pharma Course (Training)
Column equilibration is the process of stabilising the HPLC column with mobile phase before the injection for smooth interaction of analytes with the stationary phase and mobile phase
In reverse phase isocratic, the first column should be flushed with water for five minutes and then with the mobile phase for at least 60 minutes
A smaller gradient (up to 5 to 7 minutes) should be prepared, and 5 to 7 injections of diluent/mobile should be given. 1 to 2 injections of diluent/mobile phase should be given as per the method and then analysis should be started
There may be retention time shifting, variation in result and variation in area response if the column is not equilibrated properly
To avoid analysis error, which may arise due to column equilibration
The column should be equilibrated at least 6 hours
