Essential HPLC Equations and Terminology Every Chromatographer Should Know

Essential HPLC equations and terminology encompass key parameters related to column separation, mobile and stationary phases, flow rate, retention time, and resolution. A clear understanding of these concepts is vital for accurate method development, optimisation, and reliable HPLC analysis.

In this blog, I will discuss the fundamental HPLC terms and formulas that every chromatographer should know, with explanations rooted in practical applications.

Where:

• t_R: Retention time of the analyte
• t₀: Void time (time for unretained peak)
• t_R,S: Retention time of the reference analyte
• w: Peak width at baseline
• w_1/2: Peak width at half-height
• w₁ and w₂: Peak widths of two adjacent peaks
• t_R1 and t_R2​: Retention times of two adjacent peaks
• L: Column length
• f: Front half-width at 5% peak height
• a: front half-width at 10% peak height
• b: Back half-width at 10% peak height
• W_0.05: Peak width at 5% of peak height

Essential HPLC Equations and Terminology Every Chromatographer Should Know

What is a Chromatogram?

A chromatogram is the visual output of an HPLC analysis. It displays peaks—each representing a compound in your sample—on a graph where the x-axis is time (usually in minutes) and the y-axis is signal intensity (usually detector response).

Each peak gives valuable information about a compound’s identity, concentration, and behaviour in the column.

Retention Time (R)

The retention time is the amount of time it takes for an analyte to travel through the column and reach the detector. It’s a key factor in identifying compounds, assuming consistent system conditions.

Relative Retention Time (RRT)

This is the ratio of the retention time of a compound to that of a reference compound.

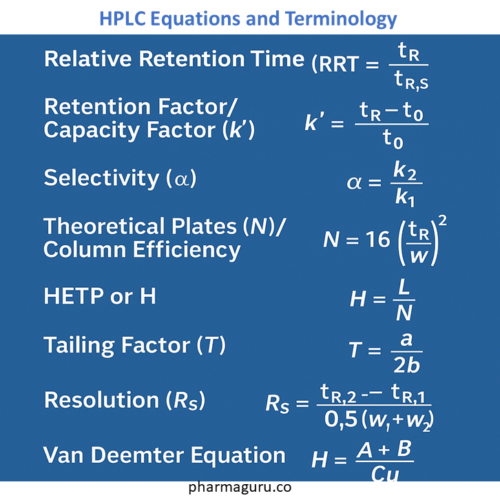

Equation: see table-1

RRT is useful when comparing chromatograms across different systems or methods, especially in regulatory submissions.

Peak Shape: Width, Height, and Area

• Peak Width (w): The baseline width of a peak. Used in efficiency and resolution calculations.
• Peak Height: The vertical height from the baseline to the peak apex. Influenced by detector settings and flow rate.
• Area Response: The area under the peak. Directly proportional to the quantity of analyte (assuming linear detector response).

Void Volume and Dead Volume

• Void Volume (V₀): The volume of mobile phase required for an unretained compound to elute. Also called dead volume.
• Why it matters: Helps calculate the retention factor (k′), and is used to normalise retention times.

Retention Factor (k′)

This describes how long a compound is retained compared to an unretained species.

Equation: See table-1

Expert Tip: An optimal k′ value is typically between 1 and 10.

Selectivity (α)

Selectivity is a measure of how well two analytes can be separated based on their retention.

Equation: See Table -1

A higher α indicates better separation potential.

Theoretical Plates (N) – Column Efficiency

Theoretical Plates are a measure of how efficiently a column can separate compounds. More plates = sharper peaks.

Equation:

Height Equivalent to a Theoretical Plate (HETP or H)

This represents the column length divided by the number of theoretical plates.

Equation: H=L/N

Where L = column length and N is the theoretical plate

Expert Tip: A lower HETP value indicates better column performance.

Resolution

Resolution tells you how well two peaks are separated.

Equation: See Table 1

Expert Tips:

• R ≥ 1.5 is considered baseline separation
• Crucial for quantitative analysis and impurity profiling

Peak Symmetry: Tailing Factor, Symmetry Factor, Asymmetry Factor

1. Tailing Factor (T):

Equation: See Table 1

Ideal T value = 1.0. Values >1 indicate tailing.

2. Asymmetry Factor :

Equation: See table 1

Expert Tip: For ideal peak, A = 1.0

Mobile Phase vs Stationary Phase

• Mobile Phase: The solvent that carries the sample through the column (e.g., water, methanol, acetonitrile).
• Stationary Phase: The material inside the column that separates analytes, typically silica bonded with functional groups.

Gradient vs Isocratic Elution

• Isocratic Elution: Constant mobile phase composition. Great for simple mixtures.
• Gradient Elution: Mobile phase composition changes over time. Ideal for complex or wide-polarity-range mixtures.

Example: Start with 10% acetonitrile, increase to 90% over 10 minutes.

C18 vs C8 Columns

Both are reversed-phase columns, but differ in hydrophobicity.

• C18 (Octadecylsilane): More hydrophobic; better for nonpolar analytes. Longer retention.
• C8 (Octylsilane): Less hydrophobic; faster elution, ideal for moderately polar analytes or shorter run times.

Definition Summary: Essential HPLC Equations and Terminology

Conclusion: HPLC Equations and Terminology

Understanding these core HPLC terms and equations isn’t just about passing exams or meeting regulatory requirements—it’s about becoming a smarter, faster, and more confident chromatographer.

Whether you’re troubleshooting a distorted peak, optimising a separation, or validating a method, these concepts guide every step of your analysis.
