HPLC Column

An HPLC column (High-Performance Liquid Chromatography column) is the heart of an HPLC system. It’s a stainless steel (or sometimes PEEK) tube packed with a solid material known as the stationary phase, which plays a key role in separating different components of a sample mixture.

Related: How To Control Impurities In Pharmaceuticals: Get Mastery In …

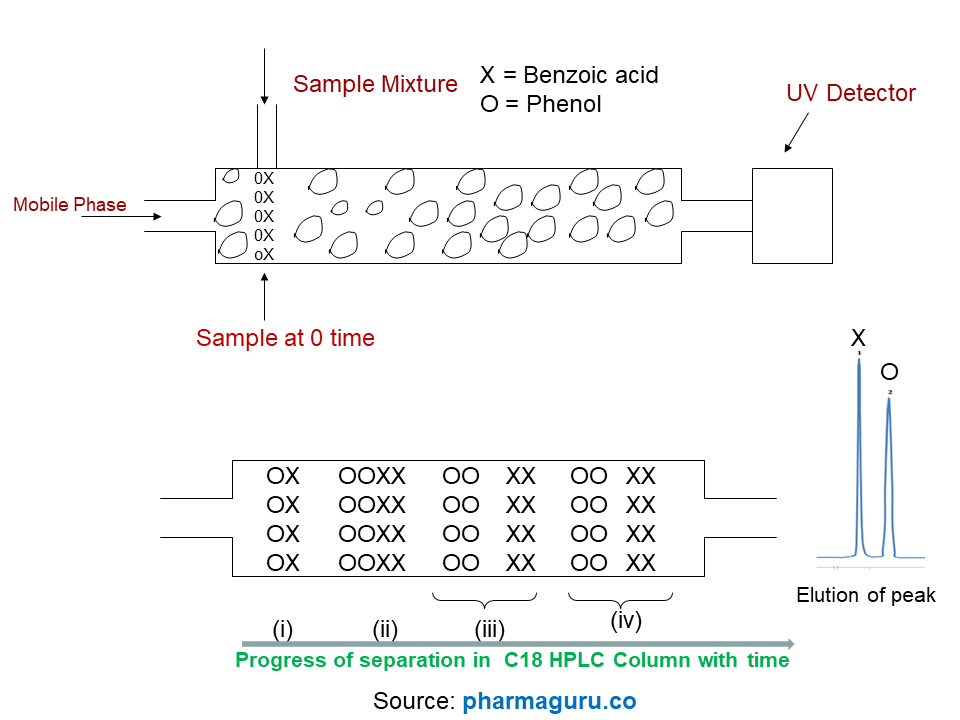

How Does an HPLC Column Work?

HPLC Working Principles include the following steps:

1. Injection of the Sample:
   A liquid sample mixture is injected into the HPLC system and carried by a solvent (called the mobile phase) through the column.
2. Separation Inside the Column:
   As the sample flows through the packed stationary phase:
   • Different compounds in the mixture interact differently with the stationary phase.
   • Some compounds attract more strongly to the stationary phase, while others pass through more quickly.
   • This difference in interaction causes the compounds to separate over time.
3. Detection:
   As each compound elutes from the column at different times, a detector measures them, typically producing a chromatogram — a graph showing the separated peaks of each compound.

Key Factors That Affect Column Performance:

• Stationary phase chemistry (e.g., C18, C8, phenyl, etc.)
• Particle size and pore size
• Column dimensions (length and inner diameter)
• Mobile phase composition

An HPLC column separates the components of a sample based on their chemical interactions with the stationary and mobile phases. It’s essential for achieving accurate, high-resolution chromatographic results

Type of HPLC Columns based on the Separation Mechanism

1. Reverse Phase Columns (RP-HPLC)
   • The most common type in pharmaceutical and analytical labs.
   • Stationary Phase: Non-polar (e.g., C18, C8, phenyl).
   • Mobile Phase: Polar (water with methanol, acetonitrile, buffers).
   • Used For: Non-polar to moderately polar compounds.
2. Normal Phase Columns (NP-HPLC)
   • Stationary Phase: Polar (silica, amino, cyano).
   • Mobile Phase: Non-polar (hexane, chloroform).
   • Used For: Separation of polar compounds or isomers.
3. Ion Exchange Columns
   • Stationary Phase: Contains charged groups.
   • Types:
     • Cation Exchange: For positively charged analytes.
     • Anion Exchange: For negatively charged analytes.
   • Used For: Inorganic ions, amino acids, proteins, peptides.
4. Size Exclusion (Gel Filtration) Columns
   • Also Called: Gel permeation chromatography (GPC).
   • Stationary Phase: Porous particles that separate molecules based on size.
   • Used For: Polymers, proteins, and large biomolecules.
5. Affinity Columns
   • Stationary Phase: Contains specific ligands for target molecules.
   • Highly selective.
   • Used For: Purification of enzymes, antibodies, and receptors.

Type of Reverse HPLC Columns

The following types of columns are widely used in the pharmaceutical industry:

• C18 (Octadecylsilane): Most commonly used; suitable for a wide range of compounds.
• C8 (Octylsilane): Less retention than C18; used for faster separations.
• Phenyl: Provides π-π interactions; useful for aromatic compounds.
• Cyano (CN): Can be used in both reverse and normal phase.
• Amino (NH₂): Used in carbohydrate analysis and normal phase separations.

Specialty Columns

• Chiral Columns: Separate enantiomers (chiral compounds).
• HILIC (Hydrophilic Interaction Liquid Chromatography) Columns: For very polar and hydrophilic compounds.
• Monolithic Columns: Single-piece structure; faster flow and lower backpressure.

Type of Reverse HPLC Columns

Proper cleaning and regeneration of HPLC columns are critical for ensuring consistent performance, extending column lifespan, and maintaining the accuracy of pharmaceutical results. Over time, solute buildup on the stationary phase can cause increased backpressure and deteriorated performance, leading to challenges and frustration for chromatographers. To address this, I’m sharing my practical, experience-based insights on effective column maintenance. You’ll learn a reliable cleaning and regeneration procedure that can restore and preserve your column’s original condition, helping you achieve optimal results with every run.

Column cleaning

Column cleaning is the process of removing residual mobile phase buffers and other contaminants that accumulate after HPLC analysis. Effective cleaning helps prevent column damage, enhances performance, and extends column lifespan. The cleaning procedure should be tailored to the column’s stationary phase chemistry and the type of mobile phase or inorganic buffers used in the analysis.

C18, C8, C4, Phenyl and other RPC columns cleaning

Use the following steps for C18, C8 and other RPC columns cleaning

1. First flush the column with water for 5 to 10 minutes to remove all Inorganic salts from the column.
2. Mix water and organic solvent in the same ratio as these solvents were mixed in mobile phase. Then wash the column with this mixture for 30 to 60 minutes
3. Then flush the column with Methanol for 10 minutes
4. Remove the column from the system, close both ends of the column with end fitting and store the same in designated place.

Silica, Amine, Diol and other NPC column cleaning

1. First flush the column with Isopropyl alcohol for 5 to 10 minutes to remove all contaminate from the column.
2. Mix Isopropyl alcohol and Hexane in ration of 50:50. Then wash the column with this mixture for 30 to 60 minutes
3. Then flush the column with Hexane for 10 minutes
4. Remove the column from the system, close both ends of the column with end fitting and store the same in designated place.

Note: For any special column manufacturer’s recommended procedure should be followed.

SCX and SAX-Ion-exchange column cleaning

Use the following steps for SCX and SAX – Ion-exchange column cleaning:

1. First, flush the column with 50/50 water-methanol mixture for 60 minutes to remove all buffer from the column.
2. Then flush the column with methanol for 20 to 30 minutes
3. Equilibrate the column with mobile phase and perform the analysis

Column Regeneration

Column regeneration is the process of removing the inorganic buffer, dissolved stationary phase and other contaminants from the column. Column regeneration restore column performance in original state. Regeneration procedure is performed only for those column that have lost their performance.

C18, C8, C4, Phenyl and other RPC columns regeneration

Use the following steps for C18, C8, C4, Phenyl and other RPC columns regeneration

1. Reverse the HPLC column and reconnect in reverse direction. The back flush the column with water for 5 to 10 minutes to remove all Inorganic salts from the column.
2. Mix water and organic solvent in the same ratio as these solvents were mixed in mobile phase. Then back-flush the column with this mixture for 30 to 60 minutes
3. Flush the column with a 50/50 water-methanol mixture for 20 to 30 minutes
4. Then back flush the column for 10 minutes with each Methanol and Isopropyl alcohol
5. Remove the column and reconnect in the normal direction. Repeat the step-2
6. Equilibrate the column with mobile phase and check the performance

Silica, Amine, Diol and other NPC column regeneration

1. First flush the column with Isopropyl alcohol for 5 to 10 minutes to remove all contaminate from the column.
2. Then flush with Etanal for 10 minutes
3. Mix Isopropyl alcohol and Hexane in ration of 50:50. Then wash the column with this mixture for 30 to 60 minutes
4. Then flush the column with Hexane for 10 minutes
5. Equilibrate the column with mobile phase and check the column performance

Note: For any special column follow the manufacturer’s guidelines

SCX and SAX – Ion-exchange Column Regeneration

Use the following steps for SCX and SAX – Ion-exchange column regeneration:

1. Double the concentration of buffer in the mobile phase ( keep in mind there should not be any precipitation in the mobile phase) and then flush the column 30 to 60 minutes using this mobile phase.
2. The flush the column with 90/10 water-methanol mixture for 40 to 60 minutes to remove all buffer from the column.
3. Then flush the column for 10 minutes first with methanol then with isopropyl alcohol and then again with methanol
4. Equilibrate the column with mobile phase and perform the analysis

Difference between column cleaning and column regeneration

Verification of column performance

Manufacturer’s COA or In-house SOP can be considered to acceptance criteria of the column. Generally, system suitability parameters like column efficiency (N), tailing factor(T) and resolution (R) are considered for verification of the column performance.

How to extend the HPLC Column life?

Adopt the following procedure to increase the column life:

• Proper sample preparation: Proper sample preparation like filtration and centrifugation be adopted.
• Proper column washing: It increases the column life and keep the column in performing state
• Use Guard column: It removes impurities from the mobile phase buffer and keep the column in performing state.
• Regular system flush: It removes all deposited solute from the system (like injection valve and tubings) and keep the column in a performing state:
• Use HPLC grade solvents and chemicals: It reduces the column contamination due to solvent or solid buffer
• Column storage: Keep the column as per manufacturer recommendation
• Use of column log book: It takes case of column performance like number of injections, column-pressure and SST status

Advantages of column cleaning and column regeneration

The following are the advantages of column cleaning and column regeneration:

• High column efficiency or theoretical plate (of the peak)
• Low HETP
• High resolution
• Acceptable tailing factor
• Fast analytical method development
• Fast routine analysis

USP Column List

The following USP columns are widely used in the industries:

1. Reversed-Phase Columns (C18, C8, C4, Phenyl)

• USP L1 (C18 Columns)
  • Example: Waters XTerra, Agilent ZORBAX SB-C18
• USP L7 (C8 Columns)
  • Example: Thermo Scientific Hypersil Gold C8
• USP L11 (C4 Columns)
  • Example: Phenomenex Luna C4
• USP L10 (Phenyl Columns)
  • Example: Agilent ZORBAX Phenyl

2. Normal Phase Columns

• USP L2 (Silica-based Columns)
  • Example: Phenomenex Luna Silica, Sigma-Aldrich LiChrospher Silica
• USP L3 (Amino Columns)
  • Example: Thermo Scientific Hypercarb

3. Ion-Exchange Columns

• USP L42 (Strong Cation Exchange Columns)
  • Example: Waters SunFire S, Agilent ZORBAX StableBond
• USP L43 (Weak Anion Exchange Columns)
  • Example: Thermo Scientific Dionex IonPac

4. Size-Exclusion Columns

• USP L47 (Gel Filtration Columns)
  • Example: TSKgel SuperSwix, Agilent BioSEC 125

5. Chiral Columns

• USP L50 (Chiral Columns for enantiomeric separations)
  • Example: Chiralpak AD, Chiralcel OD

HPLC Manufacturers:

• Waters
• Agilent Technologies
• Phenomenex
• Thermo Fisher
• Sigma-Aldrich
• Merck Millipore

Conclusion

The performance of an HPLC column is integral to the accuracy and reliability of pharmaceutical analyses. As outlined, following a Standard Operating Procedure (SOP) for column maintenance is essential to ensure consistent, high-quality results. Regular cleaning and regeneration of the column not only extend its lifespan but also prevent potential issues related to sample contamination, peak tailing, and inaccurate results. Adhering to proper protocols helps maintain the integrity of both the column and the analytical system, ultimately leading to better data reliability and fewer result failures.

Expert Suggestions:

• Regular Maintenance: Develop a detailed SOP that includes routine checks for pressure, flow rate, and column efficiency.
• Proper Storage: Always store columns under recommended conditions to avoid degradation.
• Follow Manufacturer Guidelines: Always refer to the manufacturer’s guidelines for cleaning and regeneration, as different column chemistries have specific requirements.
• Preventative Measures: Implement practices such as using filters to prevent particulate contamination and using appropriate solvents to minimize chemical degradation.

By adopting these best practices, laboratories can ensure reliable results and minimise the chances of column-related analysis failure. Remember, a well-maintained HPLC column is the backbone of accurate pharmaceutical testing.
