UV–Visible Spectrophotometer Calibration SOP: Procedures, Acceptance Criteria, Performance Tests & FAQs

UV–Visible Spectrophotometer Calibration is critical to ensure accurate wavelength, absorbance, resolution, stray light control, and line flatness, which directly impact analytical data quality. This SOP describes a comprehensive calibration procedure suitable for QC and Analytical Research & Development (ARD) laboratories.

Chemicals and Reagents

The following chemicals are required for UV spectrophotometer calibration:

• Perchloric acid
• Holmium oxide
• Sulfuric acid
• Potassium dichromate
• Potassium chloride
• Toluene
• Hexane
• Distilled water

All reagents should be of analytical reagent (AR) grade or equivalent.

Objective

The objective of this SOP is to describe the procedure for calibration and performance verification of the UV–Visible spectrophotometer, ensuring accuracy, reliability, and compliance with laboratory quality requirements.

Scope

This procedure applies to all UV–Visible spectrophotometers used in the QC and ARD departments of the company.

Responsibility

• Research Scientists / Chemists / Analysts
  Responsible for performing UV spectrophotometer calibration as per this SOP and documenting results.
• Head of Department (HOD)
  Responsible for ensuring the implementation and compliance of this SOP in the respective departments.

Frequency of UV–Visible Spectrophotometer Calibration

• Once every three months (Quarterly)
• Allowable tolerance: ± 5 days

Related: Pharmaceutical Analysis

Calibration Parameters

The following performance parameters shall be verified during UV calibration:

1. Control of wavelength
2. Control of absorbance
3. Limit of stray light
4. Resolution power
5. Line flatness

Control of Wavelength Accuracy

Solution Preparation

1.4 M Perchloric Acid Solution

• Pipette 11.5 mL of perchloric acid (~60%) into a 100 mL volumetric flask.
• Make up the volume with distilled water.

Note:
Higher-strength perchloric acid may be used, provided dilution is adjusted accordingly.

Holmium Perchlorate Solution

• Accurately weigh about 400 mg of holmium oxide.
• Transfer into a 10 mL volumetric flask containing 1.4 M perchloric acid.
• Shake well to dissolve and make up the volume with 1.4 M perchloric acid.

Procedure

1. Take a matched pair of 1 cm quartz cuvettes.
2. Perform baseline correction using 1.4 M perchloric acid from 200 to 600 nm.
3. Remove the sample cell and rinse with holmium perchlorate solution.
4. Fill the cell with holmium perchlorate solution, clean the outer surface, and place it in the sample compartment.
5. Record the absorption spectrum from 200 to 600 nm.

Acceptance Criteria

• ± 1 nm for wavelengths from 200 to 400 nm
• ± 3 nm for wavelengths from 400 to 600 nm

Table 1: Wavelength Accuracy Acceptance Criteria

Control of Absorbance Accuracy

Solution Preparation

0.005 M Sulfuric Acid

• Dilute 0.41 mL of sulfuric acid to 1500 mL with distilled water.

Potassium Dichromate Solution A

• Weigh NLT 57 mg and NMT 63 mg of potassium dichromate.
• Dissolve in 50 mL of 0.005 M sulfuric acid.
• Make up the volume to 100 mL with the same acid.

Potassium Dichromate Solution B

• Prepare as described for Solution A.

Procedure

1. Take a matched pair of 1 cm cuvettes.
2. Perform baseline correction using 0.005 M sulfuric acid from 200 to 600 nm.
3. Rinse the cell with Solution A, fill, and record absorbance at:
   • 235 nm
   • 257 nm
   • 313 nm
   • 350 nm
4. Rinse the cell with Solution B and measure absorbance at 430 nm.

Calculation

Specific Absorbance at A nm = (Absorbance at A nm × Final Volume×10​) ÷ Sample Weight (mg)

Acceptance Criteria

Table 2: Specific Absorbance Limits

Limit of Stray Light

Solution Preparation

• Prepare 1.2% w/v potassium chloride solution by dissolving 1.2 g in 100 mL of distilled water.

Procedure

1. Take a pair of 1 cm cuvettes.
2. Perform autozero using distilled water.
3. Fill the sample cell with potassium chloride solution.
4. Measure absorbance at 200 nm.

Acceptance Criteria

• Absorbance must not be less than 2.0

Resolution Power

Solution Preparation

• Prepare 0.02% v/v toluene in hexane:
  • Dilute 2 mL of toluene to 200 mL with hexane.
  • Further dilute 2 mL of this solution to 100 mL with hexane.

Procedure

• Record the spectrum from 260 to 275 nm, using hexane as a reference.

Resolution Ratio Calculation

Resolution Ratio = Absorbance at 269 nm ÷ Absorbance at 266 nm

Acceptance Criteria

• Ratio of absorbance ≥ 1.5

Line Flatness

Procedure

1. Use air as a blank in both the sample and reference compartments.
2. Scan from 220 to 700 nm in % transmittance mode.

Acceptance Criteria

• Transmittance must remain between 90% and 102%
• No significant deviation from the horizontal baseline

Documentation

• Record all results in the UV Calibration Logbook or Electronic System
• Attach spectra printouts and reagent preparation details
• Any out-of-specification result must be investigated as per quality procedures

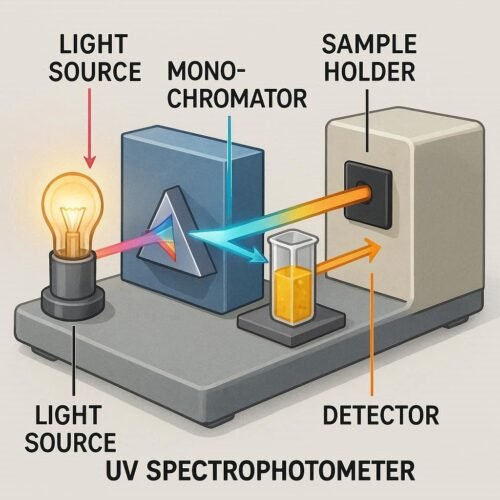

Related: How to Perform Assay And Identification Test Uv visible ...

Abbreviations:

• HOD: Head of department
• Std: Standard
• SOP: Standard operating procedure
• COA: Certificate of analysis
• UV: Ultraviolet
• nm: Nanometer
• NLT: Not less than
• NMT: Not more than

References:

• EP
